Understanding Class Activation Mapping in Deep Learning

Introduction to Class Activation Mapping (CAM)

Okay, so you got this fancy ai that can kinda "see" what parts of an image are most important for, like, deciding what the image is. Pretty cool, right? It's called Class Activation Mapping, or CAM for short. Ever wonder how those ai image tools really work? Like, how does it know that's a cat and not a dog? Let's dive in...

Basically, Class Activation Mapping (CAM) is like giving your ai vision superpowers. It lets you visualize which parts of an image a convolutional neural network (cnn) is paying attention to when it makes a decision. Think of it as a heat map overlaid on your image. The "hotter" the area, the more important it was for the ai's decision.

• The main purpose of CAM is to provide interpretability to CNNs. Instead of just getting a prediction ("That's a cat!"), you get a visual explanation of why the ai thinks it's a cat. Maybe it's focusing on the pointy ears, or the whiskers. This is super helpful for understanding if the ai is making decisions based on the right features.
• CAM helps us see inside the "black box" of ai. (Artificial intelligence and explanation: How, why, and when ...) You know, those times you're thinking, "okay, but how did it know that?". It highlights the specific image regions that most influence the CNN's output, giving insight into its decision-making process. This visual feedback is way more useful than just a confidence score.
• The intuition behind CAM is actually pretty simple. It aims to identify the image regions that are most relevant to a particular class (like "cat" or "dog"). It does this by looking at the activation maps of the final convolutional layer in the CNN. These maps essentially show which features the network has learned to recognize, and how strongly they're activated in a given image.

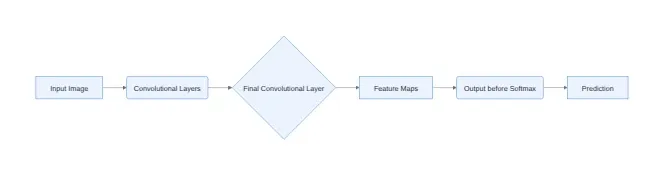

Diagram 1: CNN Feature Extraction
This diagram illustrates the initial stages of a Convolutional Neural Network (CNN). An input image is processed through a series of convolutional layers, which progressively extract more complex features. The output of these layers are feature maps, representing the network's understanding of different visual elements within the image. The process culminates at the final convolutional layer, which contains high-level feature representations. These feature maps are then fed into subsequent layers, ultimately leading to a prediction.

So, why should you care about CAM if you're into ai image enhancement? Well, quite a few reasons, actually.

• First off, it lets you understand how these models are behaving in image processing tasks. Like, if you're using ai for photo colorization, CAM can show you which parts of the black and white image are most influential in deciding what color to apply. Is it focusing on textures? Edges? This knowledge is power.
• It's also a great tool for debugging and improving ai models. If your image restoration ai is producing weird artifacts, CAM can help you pinpoint the issue. Maybe it's overemphasizing certain textures or getting confused by shadows. By visualizing the ai's focus, you can tweak the model to perform better.
• And, honestly, it's about building trust. ai is still kinda new to a lot of people. By making these ai tools more transparent, we can build trust in their capabilities. People are more likely to use something if they understand how it works.

Okay, quick crash course on CNNs. Don't worry, it won't be too painful.

• CNNs are made up of layers – convolutional layers, pooling layers, and fully connected layers. The convolutional layers learn features from the image, like edges and textures. The pooling layers reduce the size of the feature maps, making the network more efficient. And the fully connected layers make the final prediction.
• CNNs learn by looking at tons of images and adjusting their internal parameters to better recognize patterns. The convolutional layers act like feature detectors, learning to identify specific visual elements in the image.
• The final convolutional layer is especially important for CAM because it contains the most high-level features that the network has learned. These features are then used to create the class activation map, showing which parts of the image are most relevant for the final prediction. And that's why it's so useful.

Diagram 2: CAM Calculation Steps
This diagram outlines the core process of generating a Class Activation Map (CAM). It begins with the feature maps produced by the final convolutional layer. These feature maps are then weighted based on their importance for a specific class, typically derived from gradients. A weighted sum of these feature maps is computed, resulting in a raw Class Activation Map. This map is then upsampled to match the original image dimensions, and finally visualized as a heatmap overlay.

So, now you've got a good grasp of how CAM works its magic, from feeding in an image to getting that revealing heatmap. Next up, we'll get a bit more hands-on and look at some code to see how you can implement CAM yourself.

How CAM Works: A Step-by-Step Explanation

Ever looked at a magic trick and wondered, "How'd they do that?" Well, CAM can feel a bit like that, but instead of rabbits, it's all about ai and images. Let's pull back the curtain and see how it really works.

First up, the image has to go through the CNN. Think of it like a factory assembly line, each layer doing it's own lil' bit. You feed the ai an image – let's say, a photo of a dog. This image then gets processed by all those convolutional layers.

• Each layer extracts features, starting with simple things like edges and corners, and working its way up to more complex stuff like eyes, noses, and paws. By the time it hits the final convolutional layer, the network has a pretty good idea of what's in the image. These are the feature maps, and they're super important.
• These feature maps basically represent the ai's understanding of the image. They highlight the areas that the network thinks are important. The output right before the softmax layer is what we're really after. This output contains the information the network uses to make its final prediction – is it a dog? A cat? A teapot?

Okay, this is where things get a little bit math-y, but don't worry, we'll keep it simple. To figure out which feature maps are most important, we need to calculate some weights. These weights tell us how much each feature map contributed to the final prediction.

• We use the gradients of the target class (like "dog") with respect to those feature maps. Gradients basically show how much a small change in a feature map would affect the final prediction. High gradient = important feature.
• Then comes Global Average Pooling (GAP). GAP takes all those gradients and squishes them down into a single number for each feature map. That number becomes the weight. It's like averaging all the "importance scores" across the entire feature map. Because CAM relies on averaging the gradients across the entire spatial dimension of the feature maps to derive these weights, it specifically requires a GAP layer to perform this aggregation.
• These weights are crucial because they tell us which features the network found most relevant for identifying the class we're interested in. A high weight means that feature was super important in deciding, "Yep, that's a dog!".

Alright, we've got our feature maps and our weights. Now it's time to put them together and make the Class Activation Map.

• We take a weighted sum of all the feature maps, using the weights we just calculated. This means we multiply each feature map by its corresponding weight and then add them all up. The result is a single map that highlights the regions most relevant to the class.
• Since the feature maps are usually smaller than the original image, we need to upsample the CAM to the original image size. This basically means stretching it out so it lines up with the pixels in the original image. Think of it like blowing up a small photo – you want to make sure it fits the frame.
• Finally, we visualize the CAM as a heatmap overlaid on the original image. The "hotter" the color (usually red or yellow), the more important that region was for the ai's decision. Now you can see what the network was looking at!

Let's say you're using ai to spot defects on a production line. The CAM can highlight which parts of the product the ai is focusing on when it detects a defect. Is it looking at the edges? The surface texture? Knowing this can help you improve the ai's accuracy or even tweak the manufacturing process. Or imagine using ai in healthcare to detect diseases in medical images. CAM could show doctors exactly which parts of an x-ray or MRI the ai flagged as suspicious, helping them make more informed decisions.

So, now you've got a good grasp of how CAM works its magic, from feeding in an image to getting that revealing heatmap. Next up, we'll get a bit more hands-on and look at some code to see how you can implement CAM yourself.

Applications of CAM in AI Image Enhancement and Related Tasks

Okay, so you're probably thinking, "CAM is cool and all, but what can I actually do with it?" Turns out, quite a lot! It's not just some academic toy; it has real-world uses.

Here's a few ways CAM is making waves in the ai image world:

• Improving Background Removal Tools: Ever get annoyed when a background remover chops off part of your subject? CAM can help! By using CAM to more accurately identify the foreground objects, the ai can create much better segmentation masks. This mean cleaner cuts and less, y'know, random bits of your hair disappearing. Snap-- right off!

  • Many organizations are using CAM to improve their background removal tools.
  • For instance, Snapcorn's background remover leverages CAM for precise object detection, helping to refine those segmentation masks. You can check out their tools for more details.

• Enhancing Photo Colorization ai: Remember those black and white photos you want to bring to life? CAM can guide those colorization models to zone in on the important bits, like faces, clothes, or landscapes, so it knows what colors should go where. This leads to more accurate and realistic colorizations. No more weirdly colored skies!

  • CAM can identify objects and their appropriate colors by understanding the context and learned color associations for different visual elements.
  • This can improve the accuracy and realism of colorized images.

• Optimizing Image Restoration Services: Got some old photos that are all faded and scratched? CAM can help target the restoration efforts on the areas that really matter. Like, instead of wasting processing power on the blurry background, it can focus on bringing those faces back into focus.

  • CAM can identify damaged or degraded regions in old photos.
  • This allows restoration efforts on areas with the most visual impact.
  • For example, using CAM to prioritize the restoration of faces in old portraits.

Now, lets say you've got a tiny image, and you want to make it bigger without it looking like a blurry mess. CAM can assist the upscaling process by focusing on the important details, like edges and textures. This can seriously improve the sharpness and clarity of the upscaled image.

• CAM can guide the upscaling process, focusing on important details.
• This improves the sharpness and clarity of upscaled images.

So, next time you're using one of these ai image tools, remember there's a good chance CAM is working behind the scenes, helping it "see" what's important.

Next up, we're gonna dive into some code and see how you can implement CAM yourself. Get ready to get your hands dirty.

Limitations and Challenges of CAM

Okay, so CAM's pretty neat, right? But like anything in tech, it ain't perfect. Let's be real, there's some limitations and challenges you gotta keep in mind.

One of the biggest gotchas with CAM is that it's kinda picky about the type of Convolutional Neural Network (CNN) it works with. Specifically, it needs a CNN architecture that includes a Global Average Pooling (GAP) layer right before the final classification layer. And if your CNN doesn't have that? Well, CAM just won't work straight outta the box.

• If you're trying to use CAM with a different architecture, you're gonna have to make modifications. That could mean adding a GAP layer or tweaking the network in other ways, which can be a pain.
• Thankfully, there's alternatives like Grad-CAM, which is more flexible and can be applied to a broader range of CNN architectures. It's like the CAM's cooler, more adaptable cousin.

Think of CAM like a map – it shows you the important areas, but it's not always super detailed. The resolution of the activation map is limited by the size of the final convolutional layer.

• If that layer is small, your CAM is gonna be kinda blurry, making it tough to pinpoint fine-grained details. Trying to spot a specific type of lesion in a medical image? Good luck if your CAM's too low-res.
• There's definitely techniques to improve CAM resolution, like using deconvolutional layers or guided backpropagation. Deconvolutional layers, sometimes called transposed convolutions, essentially reverse the convolution operation to upsample feature maps, potentially recovering finer spatial details. Guided backpropagation is another method that selectively backpropagates gradients only for positive activations, helping to refine the visualization. But these can add complexity and computational cost.

The issue of spurious correlations and bias is a significant challenge when interpreting CAM results. It's like when your ai thinks it's spotting a bird, but it's really just focusing on a random cloud in the background.

• You gotta be careful when interpreting CAM results. Just because the ai is focusing on something doesn't necessarily mean that's the real reason it's making a certain prediction.
• And of course, if your training data is biased, CAM will likely reflect those biases. If your ai is trained mostly on images of male doctors, it might unfairly highlight male faces in medical images, even if gender is irrelevant. Addressing biases in the training data is super important for improving CAM accuracy and fairness.

So, CAM's not a perfect, magic bullet. Keep these limitations in mind, and you'll be in a better position to use it effectively. Next, we'll look at some ways to actually implement CAM.

Beyond CAM: Exploring Advanced Techniques for Visualizing CNNs

So, Class Activation Mapping is cool, yeah? But what if i told you there's more to the story? It's like discovering there's a secret level in your favorite video game.

CAM has some limitations, like needing that global average pooling (GAP) layer we talked about. But don't worry, clever folks have come up with other ways to "see" what CNNs are looking at. Let's take a peek, shall we?

• Grad-CAM: Gradient-weighted Class Activation Mapping is like CAM’s more flexible cousin. It uses gradients to figure out which parts of the image are important. The cool part? It doesn't need that GAP layer. This means you can use it on a wider range of CNN architectures. It's a handy tool if you're working with models that weren't designed with CAM in mind.

  • Example: Imagine you have a CNN for medical image analysis that doesn't have a GAP layer. Grad-CAM can still generate a heatmap showing which regions of the scan are most indicative of a particular disease.

• LIME (Local Interpretable Model-agnostic Explanations) is another neat technique. LIME basically pokes and prods the ai around your specific image, trying to figure out what small changes would make it change its mind. Then, it builds a simpler, easier-to-understand model that explains the ai's behavior locally. This can be super useful when you wanna understand why the ai made a certain decision on a specific image.

  • Example: If an ai classifies a picture of a car as a "truck," LIME could highlight the specific pixels (like the wheels or the truck bed shape) that led to that misclassification.

• SHAP (SHapley Additive exPlanations) gets its smarts from game theory--seriously. It treats each feature (like a pixel or a group of pixels) as a "player" in a game, and it figures out how much each player contributed to the final outcome. SHAP gives you a more complete picture of feature importance, and it can handle more complex interactions between features. It's often considered very comprehensive.

  • Example: For an image classification task, SHAP can show you not only which pixels are important but also how they interact with each other to influence the final prediction, providing a deeper understanding than simpler methods.

Okay, so how do you pick the right visualization technique? Well, it depends on what you need.

If you want something simple and easy to implement for specific architectures, CAM is a good starting point. If you need more flexibility across different models, Grad-CAM is a strong choice. For understanding local decision-making on individual images, LIME is excellent. And if you need a comprehensive and theoretically grounded explanation of feature importance, SHAP is often the go-to.

Each of these methods offers a different way to peek inside the "black box" of CNNs, helping us understand and trust these powerful ai tools. So, what's next? Well, it's time to roll up our sleeves and get our hands dirty with some code.

Conclusion

Okay, so we've journeyed through the land of Class Activation Mapping, and, honestly, it's pretty cool stuff. But what's the real takeaway here?

• CAM is your ai whisperer. You can finally see what your CNN is focusing on. It's not just about getting an answer; it's about understanding why. This is crucial for debugging, improving, and, honestly, trusting ai systems. Think about it: you wouldn't blindly trust a human advisor without understanding their reasoning, right? Same goes for ai.

• It's all about transparency, which is becoming a bigger deal every day. People are, rightfully, getting more skeptical of "black box" ai. Techniques like CAM are vital for building trust and ensuring that ai is used responsibly. As ai becomes more integrated into industries like healthcare, finance, and even creative fields like photography, the need for transparency only grows.

• The future is visual. CAM is just one piece of a much larger puzzle. The field of interpretable ai is exploding with new techniques for visualizing and understanding CNNs. From Grad-CAM (which, as we discussed, is more flexible) to SHAP and LIME, there's a growing toolbox for peeking inside the ai "brain".

The cool thing is that this is just the beginning! Expect to see even more sophisticated visualization techniques emerge, maybe even ai that can explain itself in plain english. Now that really, would be something wouldn't it? As ai becomes more powerful, it's crucial that we keep pushing for transparency and explainability. It's not just about making ai smarter; it's about making ai understandable.
